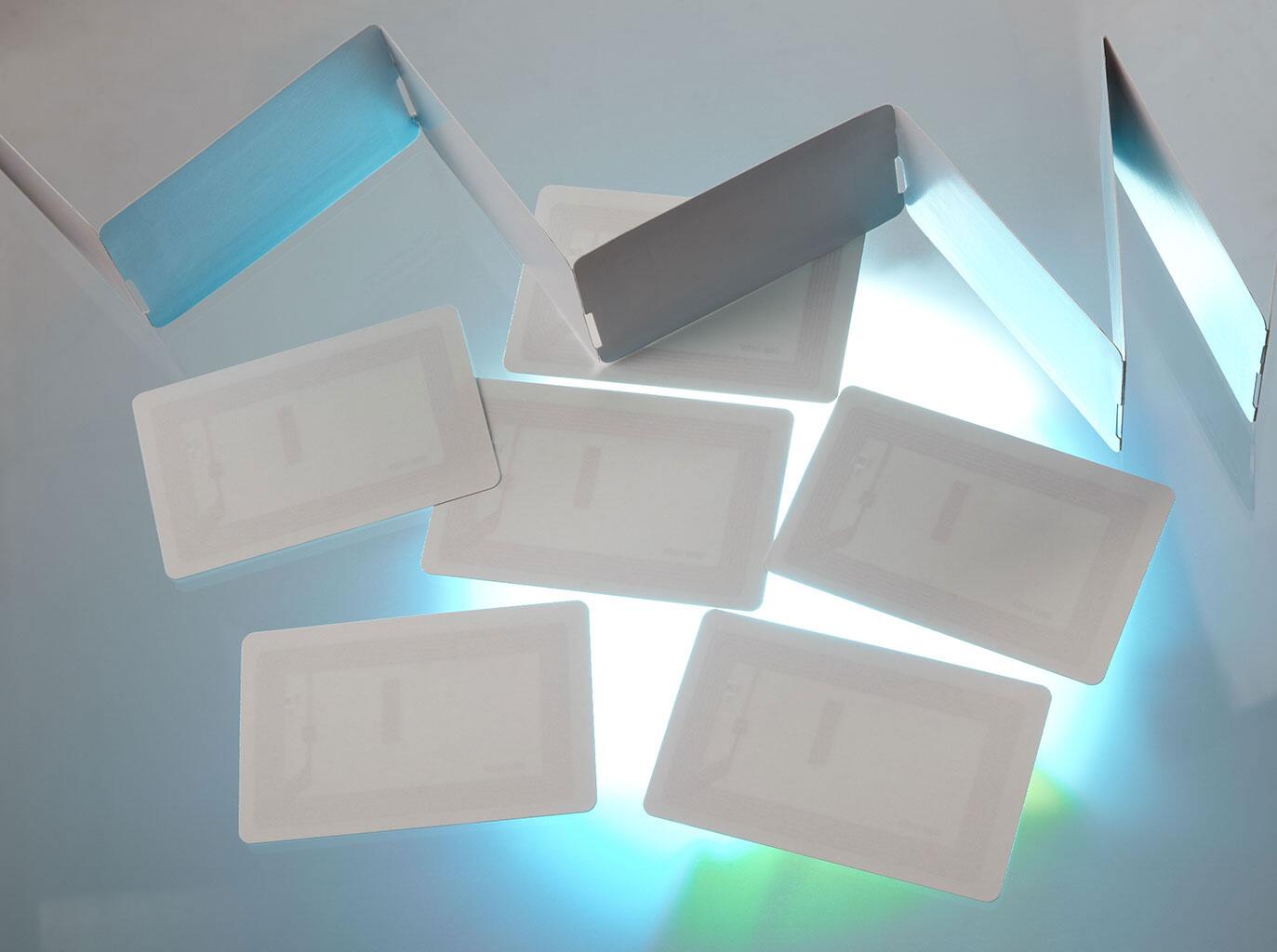

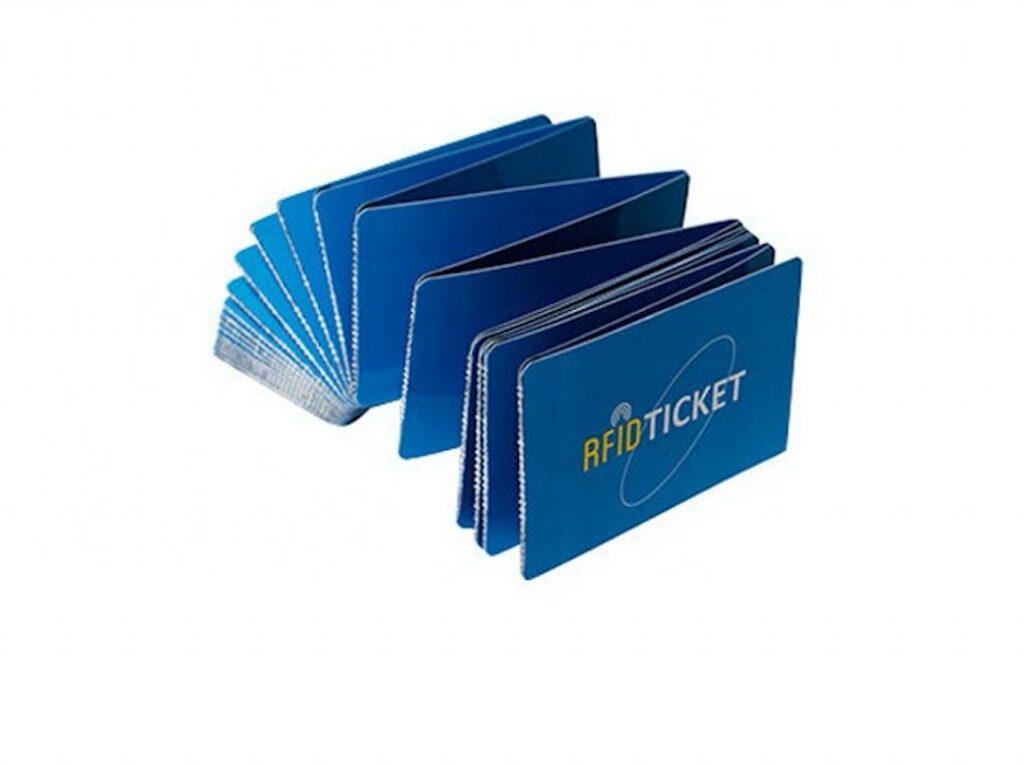

RFID paper cards are cards made of paper or cardstock material that contain embedded RFID chips. They are a popular, low-cost option for applications like public transit fare collection, event ticketing, loyalty programs, access control, etc. They contain RFID chips, support low frequency, high frequency and ultra high frequency RFID chips. RFID paper cards suitable for high-volume programs with limited budgets because they are cheaper than other RFID products. RFID paper cards are disposable but can have a long lifespan depending on the application. Transit cards may last 2-5 years while event cards are discarded after one use. Custom designs include card numbers, instructions, company branding can be printed on the card paper.
Parameters of Contact/Contactless chip
Chip model | Brand | Type | Frequency | Memory | Read-Write time | Data conservation | Protocal |
Mifare S50 | NXP | Contactless | 13.56Mhz | 1Kbyte | 100000 | 10 years | ISO 14443A |
Mifare S70 | NXP | Contactless | 13.56Mhz | 4Kbyte | 100000 | 10 years | ISO 14443A |
Mifare desfire 2k | NXP | Contactless | 13.56Mhz | 2Kbyte | 500000 | 10 years | ISO 14443A |
Mifare desfire 4k | NXP | Contactless | 13.56Mhz | 4Kbyte | 500000 | 10 years | ISO 14443A |
Mifare desfire 8k | NXP | Contactless | 13.56Mhz | 8Kbyte | 500000 | 10 years | ISO 14443A |
Mifare ultralight | NXP | Contactless | 13.56Mhz | 64byte | 100000 | 5 years | ISO 14443A |
Mifare PLUSS2K/X2K | NXP | Contactless | 13.56Mhz | 2byte | 200000 | 10 years | ISO 14443A |
M1 PLUSS2K/4K | NXP | Contactless | 13.56Mhz | 4byte | 200000 | 10 years | ISO 14443A |
I-CODE SLI | NXP | Contactless | 13.56Mhz | 1024bits | 100000 | 40 years | ISO15693 |
HITAG1 | NXP | Contactless | 125KHZ | 2048bits | 100000 | 10 years | ISO11784/785 |
HITAG2 | NXP | Contactless | 125KHZ | 256bits | 100000 | 10 years | ISO11784/785 |
HITAG3 | NXP | Contactless | 125KHZ | 256/2048bits | 100000 | 10 years | ISO11784/785 |
FM11RF08 | FUDAN | Contactless | 13.56Mhz | 1Kbyte | 100000 | 10 years | ISO14443A |
FM11RF32 | FUDAN | Contactless | 13.56Mhz | 4Kbyte | 100000 | 10 years | ISO14443A |
FM1208 series | FUDAN | Contactless | 13.56Mhz | 8Kbyte | 100000 | 10 years | ISO14443A |
FM1204 | FUDAN | Contactless | 13.56Mhz | 4Kbyte | 100000 | 10 years | ISO14443A |
Legic256 | Legic | Contactless | 13.56Mhz | 256byte | 100000 | 10 years | |
Ti2048 | TI | Contactless | 13.56Mhz | 256byte | 100000 | 10 years | ISO15693 |
ID4001/4100 | RUIXIN | Contactless | 125KHZ | – | 100000 | 10 years | – |
EM4200/4305 | EM | Contactless | 125KHZ | – | 100000 | 10 years | – |
T5577 | ATMEL | Contactless | 125KHZ | 330bits | 100000 | 10 years | ISO1178/785 |
U-CODE HSL | HSL | Contactless | 915KHZ | 2048bits | 100000 | 10 years | ISO18000-6B |
Alien9662(H3) | ATMEL | Contactless | 915KHZ | 96bit EPC/512Bit usermemory | 100000 | 10 years | ISO18000-6C |
FM1216 series | FUDAN | Contactless | 13.56Mhz | 16Kbyte | 100000 | 10 years | ISO14443A |
