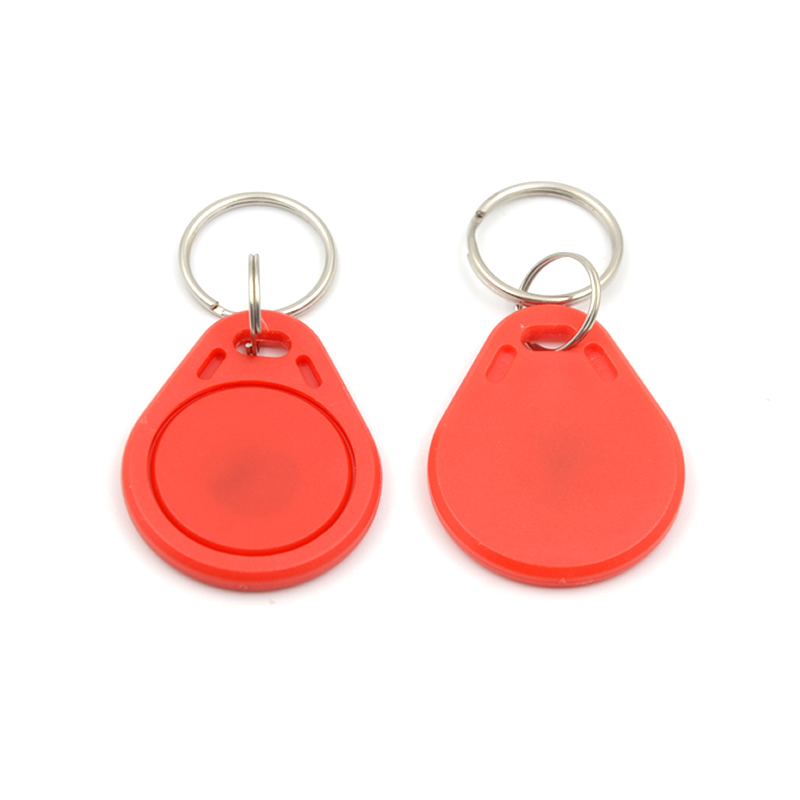

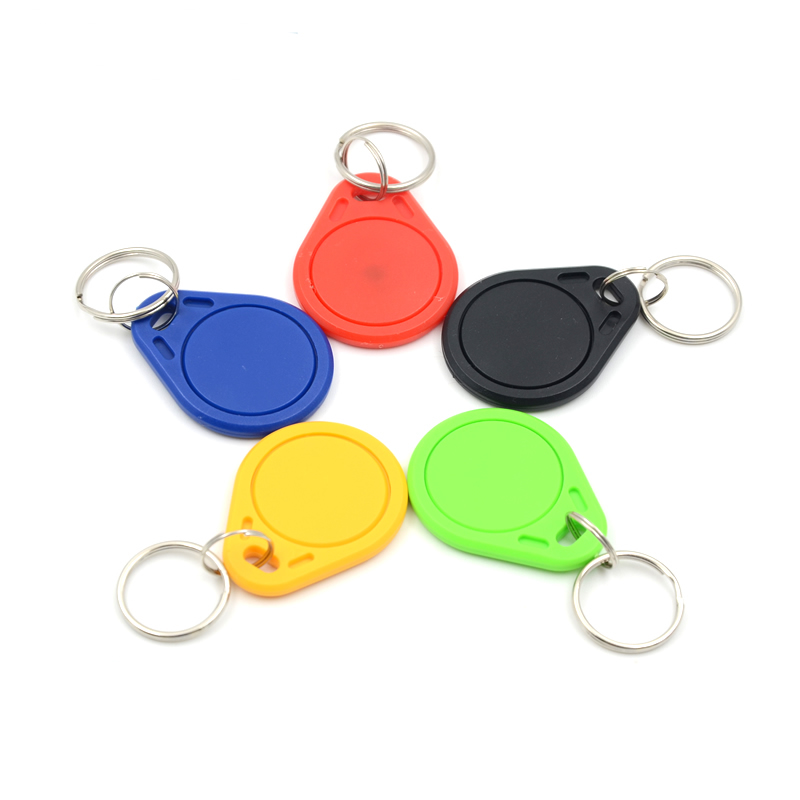

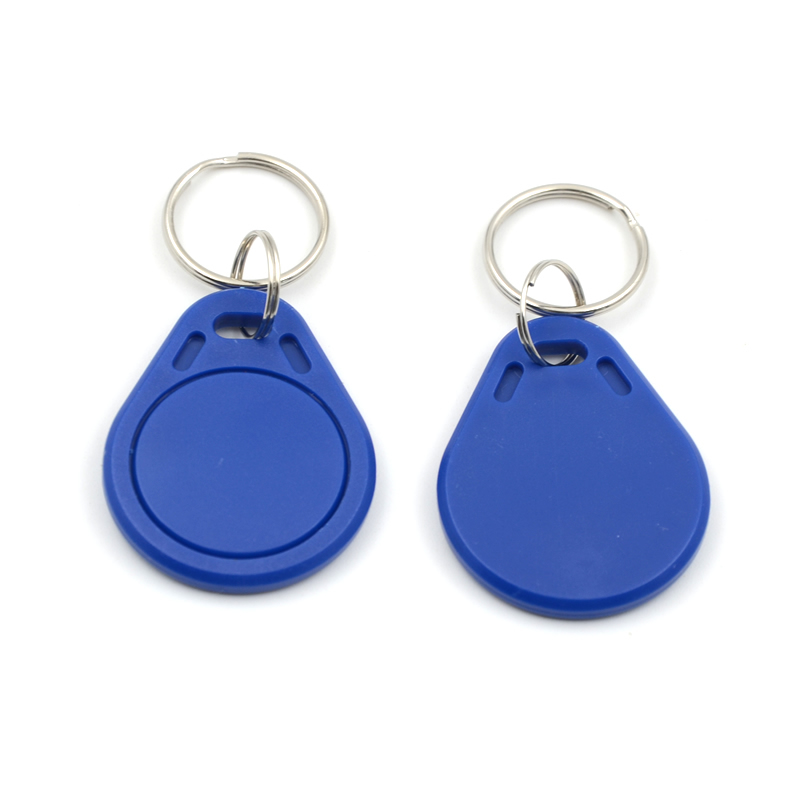

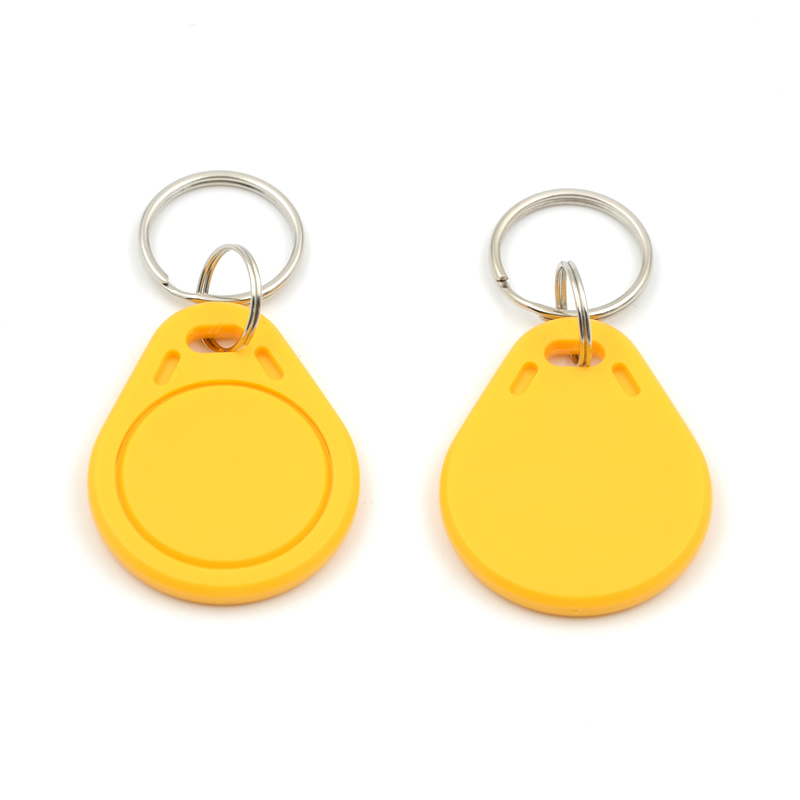

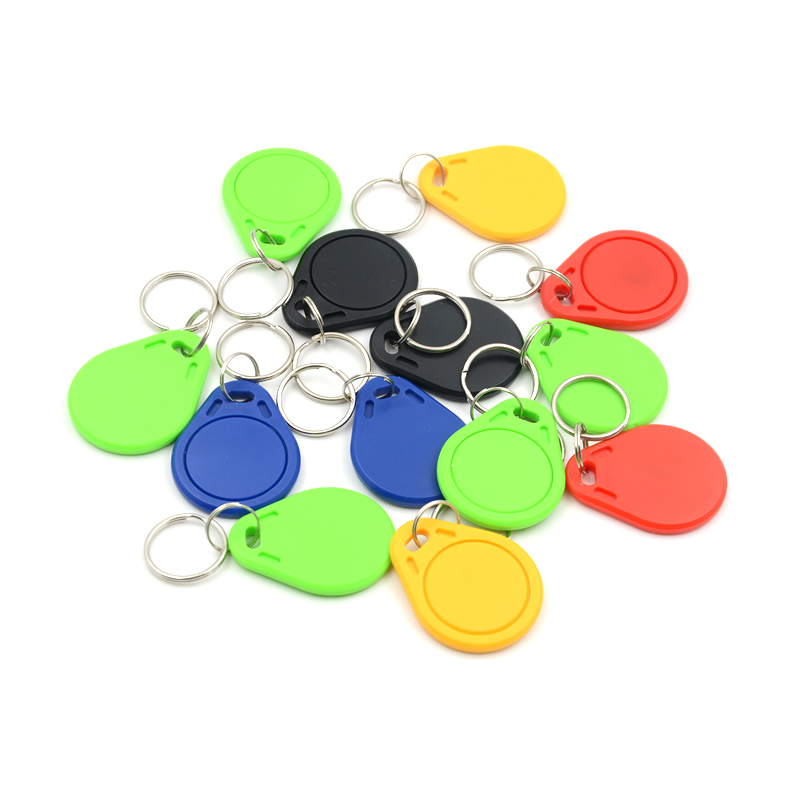

RFID keyfobs are access control tokens that contain RFID chips. RFID keyfobs are used for contactless identification or to enable access to buildings and secure areas. They contain unique ID codes in RFID tags that can be read by RFID readers to identify the keyfob holder and grant or deny access. RFID keyfobs are a popular method for access control in offices, gyms, apartments, parking garages, etc. They are reusable and programmable, you can reprogram the RFID tags with new access codes or access privileges as needed.
Parameters of Contact/Contactless chip
Chip model | Brand | Type | Frequency | Memory | Read-Write time | Data conservation | Protocal |
Mifare S50 | NXP | Contactless | 13.56Mhz | 1Kbyte | 100000 | 10 years | ISO 14443A |
Mifare S70 | NXP | Contactless | 13.56Mhz | 4Kbyte | 100000 | 10 years | ISO 14443A |
Mifare desfire 2k | NXP | Contactless | 13.56Mhz | 2Kbyte | 500000 | 10 years | ISO 14443A |
Mifare desfire 4k | NXP | Contactless | 13.56Mhz | 4Kbyte | 500000 | 10 years | ISO 14443A |
Mifare desfire 8k | NXP | Contactless | 13.56Mhz | 8Kbyte | 500000 | 10 years | ISO 14443A |
Mifare ultralight | NXP | Contactless | 13.56Mhz | 64byte | 100000 | 5 years | ISO 14443A |
Mifare PLUSS2K/X2K | NXP | Contactless | 13.56Mhz | 2byte | 200000 | 10 years | ISO 14443A |
M1 PLUSS2K/4K | NXP | Contactless | 13.56Mhz | 4byte | 200000 | 10 years | ISO 14443A |
I-CODE SLI | NXP | Contactless | 13.56Mhz | 1024bits | 100000 | 40 years | ISO15693 |
HITAG1 | NXP | Contactless | 125KHZ | 2048bits | 100000 | 10 years | ISO11784/785 |
HITAG2 | NXP | Contactless | 125KHZ | 256bits | 100000 | 10 years | ISO11784/785 |
HITAG3 | NXP | Contactless | 125KHZ | 256/2048bits | 100000 | 10 years | ISO11784/785 |
FM11RF08 | FUDAN | Contactless | 13.56Mhz | 1Kbyte | 100000 | 10 years | ISO14443A |
FM11RF32 | FUDAN | Contactless | 13.56Mhz | 4Kbyte | 100000 | 10 years | ISO14443A |
FM1208 series | FUDAN | Contactless | 13.56Mhz | 8Kbyte | 100000 | 10 years | ISO14443A |
FM1204 | FUDAN | Contactless | 13.56Mhz | 4Kbyte | 100000 | 10 years | ISO14443A |
Legic256 | Legic | Contactless | 13.56Mhz | 256byte | 100000 | 10 years | |
Ti2048 | TI | Contactless | 13.56Mhz | 256byte | 100000 | 10 years | ISO15693 |
ID4001/4100 | RUIXIN | Contactless | 125KHZ | – | 100000 | 10 years | – |
EM4200/4305 | EM | Contactless | 125KHZ | – | 100000 | 10 years | – |
T5577 | ATMEL | Contactless | 125KHZ | 330bits | 100000 | 10 years | ISO1178/785 |
U-CODE HSL | HSL | Contactless | 915KHZ | 2048bits | 100000 | 10 years | ISO18000-6B |
Alien9662(H3) | ATMEL | Contactless | 915KHZ | 96bit EPC/512Bit usermemory | 100000 | 10 years | ISO18000-6C |
Fm1216 series | FUDAN | Contactless | 13.56Mhz | 16Kbyte | 100000 | 10 years | ISO14443A |
SLE4442/5542 | SIEMENS | Contact | – | 256byte | 100000 | 10 years | ISO7816 |
SLE4428/5528 | SIEMENS | Contact | – | 1byte | 100000 | 10 years | ISO7816 |
45DB041 | ATMEL | Contact | – | 528Kbyte | 100000 | 10 years | ISO7816 |
AT88SC102 | ATMEL | Contact | – | 1024bits | 100000 | 10 years | ISO7816 |
AT88SC1604 | ATMEL | Contact | – | 5704bits | 100000 | 10 years | ISO7816 |
AT88SC153 | ATMEL | Contact | – | 2048bits | 100000 | 10 years | ISO7816 |
24 series | Contact | – | 1k-64kbits | 100000 | 10 years | ISO7816 |
