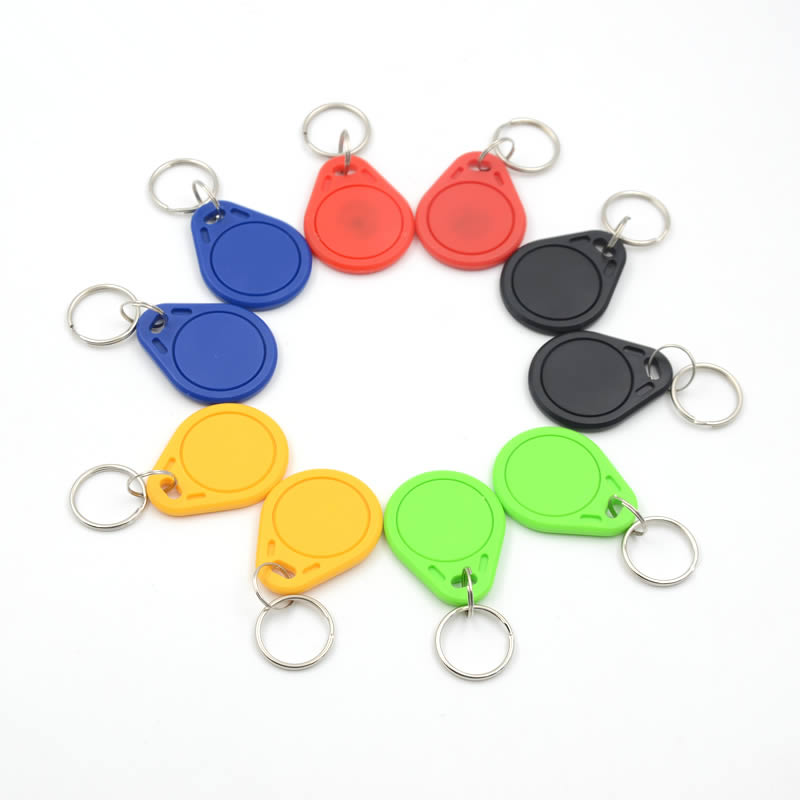

RFID key tags

Radio-frequency identification (RFID) uses electromagnetic fields to automatically identify and track tags attached to objects. The RFID cards contain electronically stored information. Passive RFID card collect energy from a nearby RFID reader’s interrogating radio waves. Active RFID card have a local power source (such as a battery) and may operate hundreds of meters from the RFID reader.

HYDcard is a high quality RFID key tags supplier. We can make your own PVC card, Gift Card, Membership Card, Transparent PVC Card, Business Card, ID Card, VIP Card, Key Tag, Custom PVC Card, Magnetic Card, Epoxy Card, RFID Card, Contact Smart Card, Card Holder, Lanyard, Badge Reel and Silicone Wristband. If you have any inquiry, please feel free to contact us.

HYD provide best RFID key tags. Many features can be supported.

◆Material: White PVC and clear PVC are the main materials. We also have colored PVC material.

◆Custom shape: If you don’t want normal CR80 credit card shape, we can produce your own shape. You can also choose special shape from our exsiting moulds.

◆Thickness: From 0.18mm to 2mm.

◆Printing method: CMYK offset printing, PMS silk printing and digital printing.

◆Lamination: Glossy finish, matte finish, frosted finish.

◆Barcode: Many barcode type supported, such as code 128, code 39.

◆Variable data: Black, white, gold and silver variable datas.

◆Signature panel: Clear signature panel, white signature panel.

◆Magnetic stripe: Hico magnetic stripe, loco magnetic stripe, black and colored magnetic stripe.

◆Foil stamping: Glod foil stamping, silver foil stamping, rainbow foil stamping

◆Metallic finish: Gold and silver metallic finish.

◆Embossing: Gold and silver embossing.

◆Hole punching: Round hole, slot hole, custom hole.

◆Scratch off panel.

Parameters of Contact/Contactless chip

Chip model	Brand	Type	Frequency	Memory	Read-Write time	Data conservation	Protocal
Mifare S50	NXP	Contactless	13.56Mhz	1Kbyte	100000	10 years	ISO 14443A
Mifare S70	NXP	Contactless	13.56Mhz	4Kbyte	100000	10 years	ISO 14443A
Mifare desfire 2k	NXP	Contactless	13.56Mhz	2Kbyte	500000	10 years	ISO 14443A
Mifare desfire 4k	NXP	Contactless	13.56Mhz	4Kbyte	500000	10 years	ISO 14443A
Mifare desfire 8k	NXP	Contactless	13.56Mhz	8Kbyte	500000	10 years	ISO 14443A
Mifare ultralight	NXP	Contactless	13.56Mhz	64byte	100000	5 years	ISO 14443A
Mifare PLUSS2K/X2K	NXP	Contactless	13.56Mhz	2byte	200000	10 years	ISO 14443A
M1 PLUSS2K/4K	NXP	Contactless	13.56Mhz	4byte	200000	10 years	ISO 14443A
I-CODE SLI	NXP	Contactless	13.56Mhz	1024bits	100000	40 years	ISO15693
HITAG1	NXP	Contactless	125KHZ	2048bits	100000	10 years	ISO11784/785
HITAG2	NXP	Contactless	125KHZ	256bits	100000	10 years	ISO11784/785
HITAG3	NXP	Contactless	125KHZ	256/2048bits	100000	10 years	ISO11784/785
FM11RF08	FUDAN	Contactless	13.56Mhz	1Kbyte	100000	10 years	ISO14443A
FM11RF32	FUDAN	Contactless	13.56Mhz	4Kbyte	100000	10 years	ISO14443A
FM1208 series	FUDAN	Contactless	13.56Mhz	8Kbyte	100000	10 years	ISO14443A
FM1204	FUDAN	Contactless	13.56Mhz	4Kbyte	100000	10 years	ISO14443A
Legic256	Legic	Contactless	13.56Mhz	256byte	100000	10 years
Ti2048	TI	Contactless	13.56Mhz	256byte	100000	10 years	ISO15693
ID4001/4100	RUIXIN	Contactless	125KHZ	–	100000	10 years	–
EM4200/4305	EM	Contactless	125KHZ	–	100000	10 years	–
T5577	ATMEL	Contactless	125KHZ	330bits	100000	10 years	ISO1178/785
U-CODE HSL	HSL	Contactless	915KHZ	2048bits	100000	10 years	ISO18000-6B
Alien9662(H3)	ATMEL	Contactless	915KHZ	96bit EPC/512Bit usermemory	100000	10 years	ISO18000-6C
Fm1216 series	FUDAN	Contactless	13.56Mhz	16Kbyte	100000	10 years	ISO14443A
SLE4442/5542	SIEMENS	Contact	–	256byte	100000	10 years	ISO7816
SLE4428/5528	SIEMENS	Contact	–	1byte	100000	10 years	ISO7816
45DB041	ATMEL	Contact	–	528Kbyte	100000	10 years	ISO7816
AT88SC102	ATMEL	Contact	–	1024bits	100000	10 years	ISO7816
AT88SC1604	ATMEL	Contact	–	5704bits	100000	10 years	ISO7816
AT88SC153	ATMEL	Contact	–	2048bits	100000	10 years	ISO7816
24 series		Contact	–	1k-64kbits	100000	10 years	ISO7816
