Contactless Smart Card
Contactless smart card is a contactless credential whose dimensions are credit-card size. Its embedded integrated circuits can store (and sometimes process) data and communicate with a terminal via NFC. Commonplace uses include transit tickets and passports.
HYDcard is a high quality contactless smart card supplier. We can make your own PVC card, Gift Card, Membership Card, Transparent PVC Card, Business Card, ID Card, VIP Card, Key Tag, Custom PVC Card, Magnetic Card, Epoxy Card, RFID Card, Contact Smart Card, Card Holder, Lanyard, Badge Reel and Silicone Wristband. If you have any inquiry, please feel free to contact us.
HYD provide best contactless smart card. Many features can be supported.
◆Material: White PVC and clear PVC are the main materials. We also have colored PVC material.
◆Custom shape: If you don’t want normal CR80 credit card shape, we can produce your own shape. You can also choose special shape from our exsiting moulds.
◆Thickness: From 0.18mm to 2mm.
◆Printing method: CMYK offset printing, PMS silk printing and digital printing.
◆Lamination: Glossy finish, matte finish, frosted finish.
◆Barcode: Many barcode type supported, such as code 128, code 39.
◆Variable data: Black, white, gold and silver variable datas.
◆Signature panel: Clear signature panel, white signature panel.

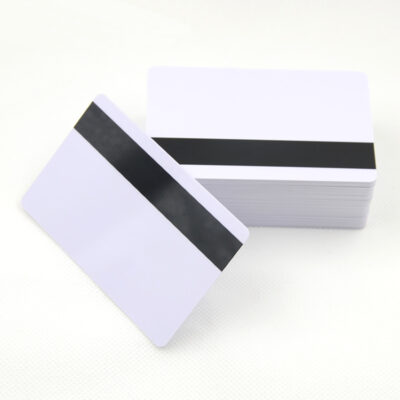

◆Magnetic stripe: Hico magnetic stripe, loco magnetic stripe, black and colored magnetic stripe.
◆Foil stamping: Glod foil stamping, silver foil stamping, rainbow foil stamping
◆Metallic finish: Gold and silver metallic finish.
◆Embossing: Gold and silver embossing.
◆Hole punching: Round hole, slot hole, custom hole.
◆Scratch off panel.
◆Related accessories: Card holder/carrier, lanyard, badge reel.
Parameters of Contact/Contactless chip
Chip model | Brand | Type | Frequency | Memory | Read-Write time | Data conservation | Protocal |
Mifare S50 | NXP | Contactless | 13.56Mhz | 1Kbyte | 100000 | 10 years | ISO 14443A |
Mifare S70 | NXP | Contactless | 13.56Mhz | 4Kbyte | 100000 | 10 years | ISO 14443A |
Mifare desfire 2k | NXP | Contactless | 13.56Mhz | 2Kbyte | 500000 | 10 years | ISO 14443A |
Mifare desfire 4k | NXP | Contactless | 13.56Mhz | 4Kbyte | 500000 | 10 years | ISO 14443A |
Mifare desfire 8k | NXP | Contactless | 13.56Mhz | 8Kbyte | 500000 | 10 years | ISO 14443A |
Mifare ultralight | NXP | Contactless | 13.56Mhz | 64byte | 100000 | 5 years | ISO 14443A |
Mifare PLUSS2K/X2K | NXP | Contactless | 13.56Mhz | 2byte | 200000 | 10 years | ISO 14443A |
M1 PLUSS2K/4K | NXP | Contactless | 13.56Mhz | 4byte | 200000 | 10 years | ISO 14443A |
I-CODE SLI | NXP | Contactless | 13.56Mhz | 1024bits | 100000 | 40 years | ISO15693 |
HITAG1 | NXP | Contactless | 125KHZ | 2048bits | 100000 | 10 years | ISO11784/785 |
HITAG2 | NXP | Contactless | 125KHZ | 256bits | 100000 | 10 years | ISO11784/785 |
HITAG3 | NXP | Contactless | 125KHZ | 256/2048bits | 100000 | 10 years | ISO11784/785 |
FM11RF08 | FUDAN | Contactless | 13.56Mhz | 1Kbyte | 100000 | 10 years | ISO14443A |
FM11RF32 | FUDAN | Contactless | 13.56Mhz | 4Kbyte | 100000 | 10 years | ISO14443A |
FM1208 series | FUDAN | Contactless | 13.56Mhz | 8Kbyte | 100000 | 10 years | ISO14443A |
FM1204 | FUDAN | Contactless | 13.56Mhz | 4Kbyte | 100000 | 10 years | ISO14443A |
Legic256 | Legic | Contactless | 13.56Mhz | 256byte | 100000 | 10 years | |
Ti2048 | TI | Contactless | 13.56Mhz | 256byte | 100000 | 10 years | ISO15693 |
ID4001/4100 | RUIXIN | Contactless | 125KHZ | – | 100000 | 10 years | – |
EM4200/4305 | EM | Contactless | 125KHZ | – | 100000 | 10 years | – |
T5577 | ATMEL | Contactless | 125KHZ | 330bits | 100000 | 10 years | ISO1178/785 |
U-CODE HSL | HSL | Contactless | 915KHZ | 2048bits | 100000 | 10 years | ISO18000-6B |
Alien9662(H3) | ATMEL | Contactless | 915KHZ | 96bit EPC/512Bit usermemory | 100000 | 10 years | ISO18000-6C |
Fm1216 series | FUDAN | Contactless | 13.56Mhz | 16Kbyte | 100000 | 10 years | ISO14443A |
SLE4442/5542 | SIEMENS | Contact | – | 256byte | 100000 | 10 years | ISO7816 |
SLE4428/5528 | SIEMENS | Contact | – | 1byte | 100000 | 10 years | ISO7816 |
45DB041 | ATMEL | Contact | – | 528Kbyte | 100000 | 10 years | ISO7816 |
AT88SC102 | ATMEL | Contact | – | 1024bits | 100000 | 10 years | ISO7816 |
AT88SC1604 | ATMEL | Contact | – | 5704bits | 100000 | 10 years | ISO7816 |
AT88SC153 | ATMEL | Contact | – | 2048bits | 100000 | 10 years | ISO7816 |
24 series | Contact | – | 1k-64kbits | 100000 | 10 years | ISO7816 |
